Bonding a highly porous, textured substrate like nonwoven fabric to a smooth, low-surface-energy material like polyethylene (PE) film at line speeds exceeding 1,000 pieces per minute presents a complex thermodynamic and mechanical engineering challenge in baby and infant care manufacturing. Inconsistent bonding leads to catastrophic product failures. These failures manifest as delamination, backsheet burn-through, or adhesive bleed-through. The immediate results include high scrap rates, excessive machine downtime, and compromised end-user trust. Selecting the right hot melt adhesive for diapers requires moving far beyond basic tack requirements. It demands a rigorous evaluation of adhesive rheology, polymer formulation, and application methodology. Production teams must achieve optimal peel strength and shear resistance without sacrificing continuous process efficiency. We will break down the exact mechanical requirements, formulation chemistry, and application variables you need to control to keep your lines running at peak efficiency.

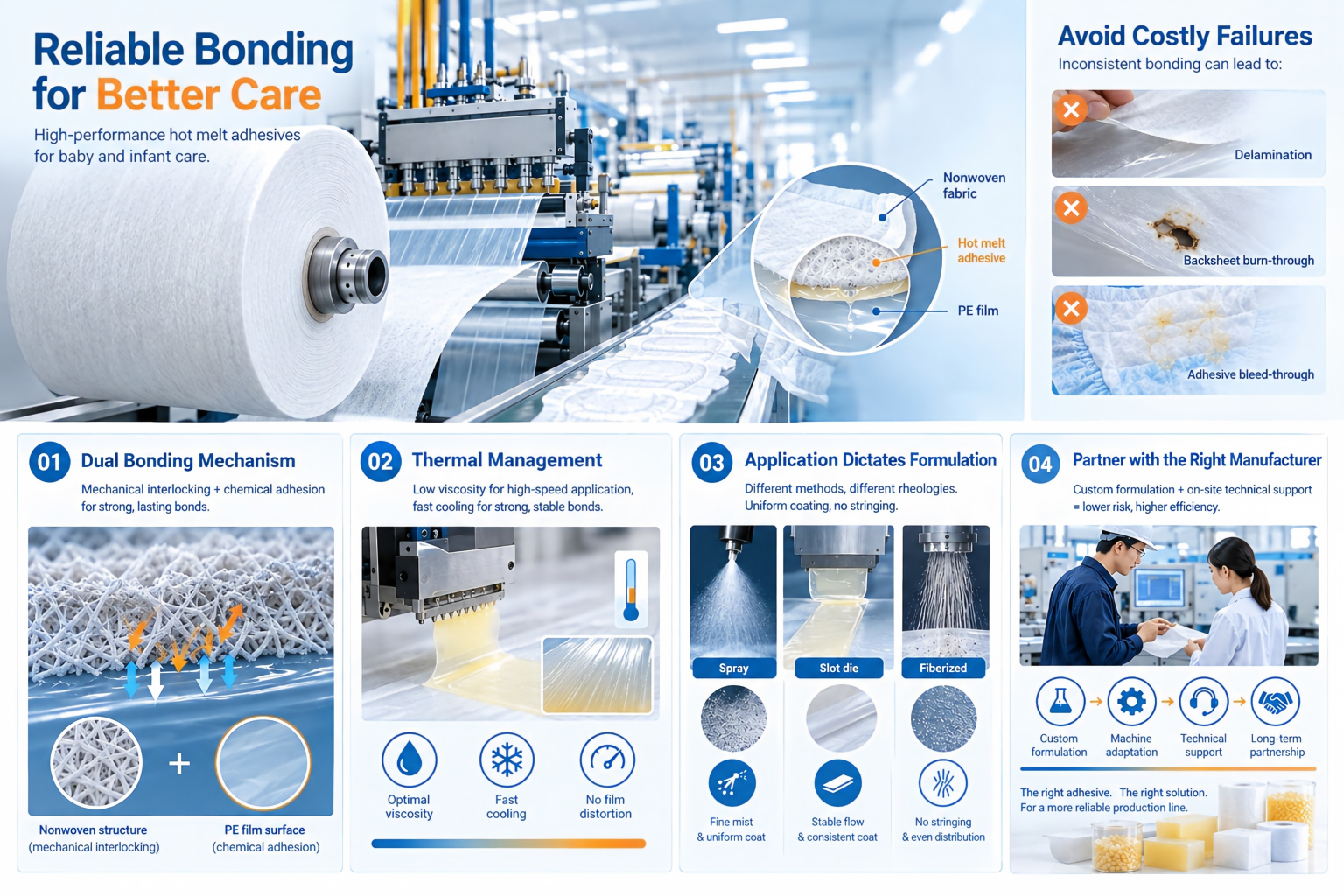

Dual Bonding Mechanism: Effective nonwoven-to-PE bonding relies on mechanical interlocking within the nonwoven matrix combined with specific chemical adhesion to the low-surface-energy PE film.
Thermal Management is Critical: As a thermoplastic bonding solution applied in a molten state, the adhesive must maintain a viscosity low enough for high-speed application but cool rapidly enough to form strong, reliable bonds without PE film distortion.
Application Dictates Formulation: Spray, slot die, and fiberized application methods require distinct adhesive rheologies to prevent stringing and ensure uniform coat weights.
Vendor Capabilities Matter: Off-the-shelf products often fail to account for specific machine tensions and substrate variations; partnering with a manufacturer capable of custom formulation and on-site technical support is a critical risk mitigation strategy.
Disposable hygiene manufacturing involves joining materials with inherently incompatible physical and chemical properties. Nonwoven topsheets and backsheets feature high void volumes and irregular fiber distributions. Polyethylene barrier films present smooth, non-polar surfaces with exceptionally low surface energy. Bridging this gap requires an adhesive capable of performing two distinct functions simultaneously. It must wet out the smooth PE film while penetrating the porous nonwoven structure. Achieving this balance under high-speed web tension defines the core challenge of diaper construction. When running lines at 1,200 pieces per minute, the window for successful bonding shrinks to milliseconds.
Nonwoven fabrics rely on controlled capillary action during the bonding process. When molten adhesive contacts the fabric, it must flow into the microscopic spaces between the synthetic fibers. This penetration creates mechanical interlocking. As the adhesive cools and solidifies, it physically encapsulates the fibers, anchoring the bond. However, manufacturers must strictly control this penetration depth. If the adhesive flows too deeply, it causes bleed-through. Bleed-through contaminates manufacturing equipment, fouls nip rollers, and creates hard, uncomfortable spots on the wearer-facing side of the diaper. Viscosity control and precise application temperatures prevent excessive capillary flow while ensuring sufficient mechanical grip. You must match the adhesive's rheology to the specific grams per square meter (GSM) of your nonwoven material.
Polyethylene film resists adhesion by nature. Its low surface energy makes it difficult for standard liquids to wet out and spread across the surface. Overcoming this requires highly specialized adhesive formulations designed to maximize specific adhesion through molecular attraction. Many production lines also utilize corona treatment to temporarily raise the surface energy of the PE film before adhesive application, typically targeting a dyne level above 38. Furthermore, modern diaper designs utilize increasingly thin-gauge PE films to improve breathability and reduce material costs. Applying molten thermoplastic to thin-gauge PE introduces a severe risk of thermal distortion. The adhesive must transfer enough heat to wet the surface but dissipate heat rapidly enough to prevent melting or warping the barrier film.
A successful bond interface balances specific adhesion to the PE film with mechanical adhesion to the nonwoven fibers. Achieving this balance relies heavily on the mechanical compression applied immediately after adhesive dispensing. Nip pressure must be precisely calibrated. The rollers must apply enough force to drive the adhesive into the nonwoven matrix and ensure intimate contact with the PE film. Conversely, excessive nip pressure will crush the delicate PE film structure or force the adhesive entirely through the nonwoven layer. Engineers must synchronize line speed, adhesive open time, and nip roller durometer to optimize this critical bonding interface.
Substrate Type | Primary Bonding Mechanism | Key Physical Challenge | Required Adhesive Property |
|---|---|---|---|
Nonwoven Fabric (Spunbond/SMS) | Mechanical Interlocking | High porosity leading to bleed-through | Controlled capillary flow, rapid set time |
Polyethylene (PE) Film | Specific Chemical Adhesion | Low surface energy, high thermal sensitivity | High initial tack, low application temperature |

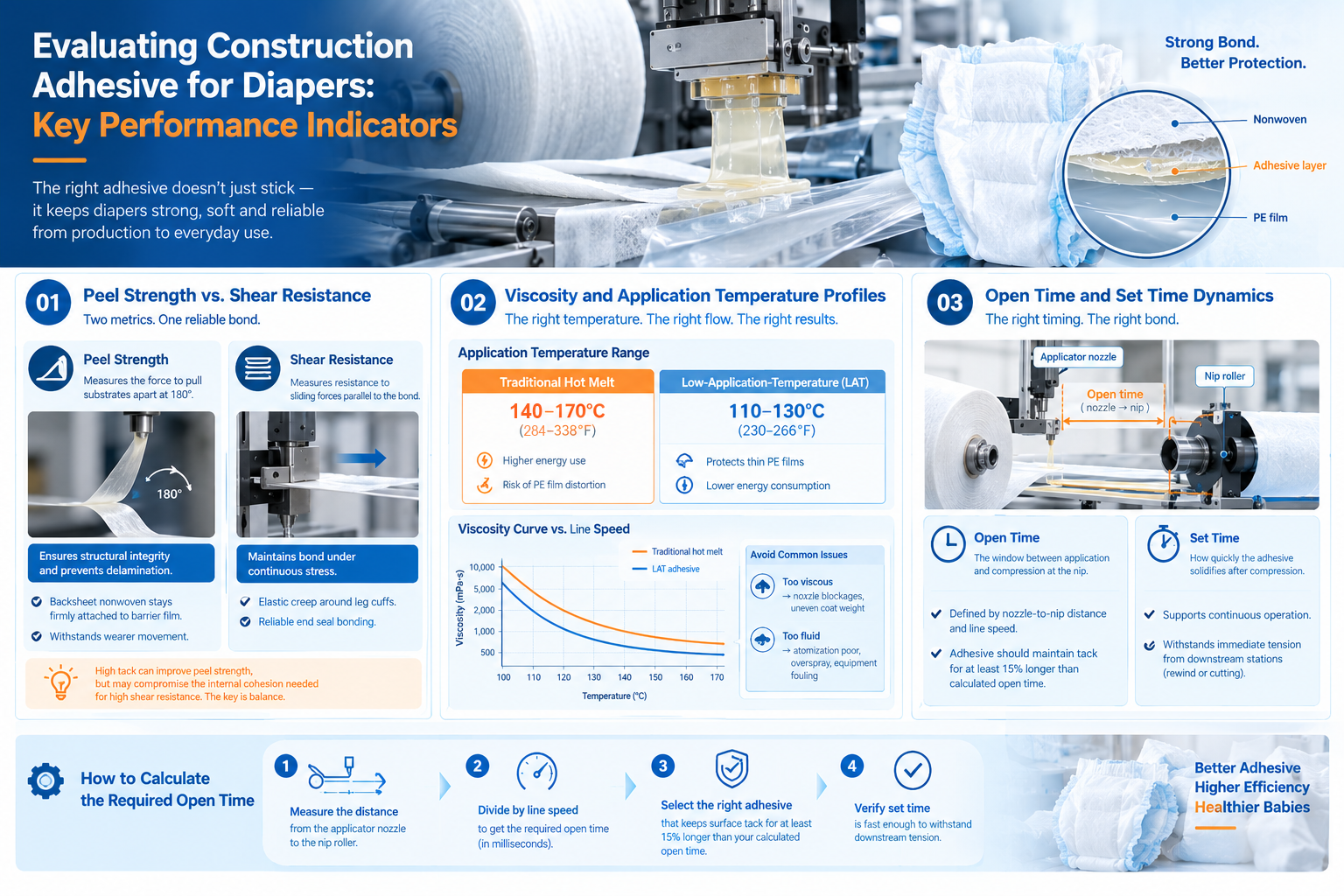

Translating adhesive technical data sheets into predictable production outcomes requires understanding specific performance metrics. A high-quality construction adhesive for diapers must deliver specific peel and shear values. Peel strength measures the force required to pull the bonded substrates apart at a 180-degree angle. This metric dictates the structural integrity of the diaper during wearer movement. High peel strength ensures the backsheet nonwoven remains firmly attached to the barrier film, preventing delamination. Shear resistance measures the adhesive's ability to withstand sliding forces parallel to the bond line. High shear resistance proves necessary for maintaining bonds under continuous stress, such as elastic creep around leg cuffs, and assures reliable end seal bonding. Formulators constantly balance these two metrics. High tack often improves peel strength but can compromise the internal cohesion required for high shear resistance.
Operating temperatures directly dictate adhesive viscosity, which in turn governs machine line speed and substrate compatibility. Traditional hot melts operate between 150°C and 170°C. However, the industry shift toward down-gauged PE films necessitates low-application-temperature (LAT) adhesives. LAT formulations operate between 110°C and 130°C. Lower temperatures protect thin films from thermal distortion and significantly reduce energy consumption at the melt tank. Engineers must map the relationship between the adhesive's viscosity curve and the targeted line speed. An adhesive that is too viscous at the operating temperature will cause nozzle blockages and uneven coat weights. An adhesive with insufficient viscosity will atomize poorly during spray applications, leading to overspray and equipment fouling.
Open time defines the window between adhesive application and the moment the substrates compress at the nip roller. The physical distance between the applicator nozzle and the nip, combined with the line speed, determines the required open time. If the adhesive cools too rapidly, it loses its tack before compression, resulting in bond failure. Set time defines how quickly the adhesive solidifies after compression to form a structural bond. Fast set times support continuous processes by allowing the bonded web to withstand immediate downstream tension without slipping or shifting. Selecting the correct adhesive requires matching these thermodynamic properties precisely to the physical layout of the production line.
Calculate the exact distance from the applicator nozzle to the nip roller.
Divide this distance by your maximum line speed to determine the required open time in milliseconds.
Select an adhesive formulation that maintains surface tack for at least 15% longer than your calculated open time to account for line speed fluctuations.
Verify the set time is fast enough to withstand the immediate tension applied by the downstream rewind or cutting stations.
Aligning adhesive rheology with specific dispensing equipment ensures continuous production without quality defects. Non-contact spray methods represent the standard for wide-area lamination. Applicators utilize pressurized air to extrude the adhesive into specific patterns, including swirl, random, and melt-blown configurations. Spray applications offer significant benefits. They provide excellent wide-area coverage, maintain substrate flexibility, and drastically reduce adhesive add-on weights compared to solid coating. However, spray dispensing requires a nonwoven bonding hot melt adhesive with highly specific rheological properties. The formulation must resist stringing, prevent nozzle clogging, and maintain a consistent pattern under high-velocity airflow. Operators must constantly monitor atomization air pressure to prevent the adhesive pattern from blowing out or narrowing unexpectedly.
Slot die coating provides high-precision, edge-to-edge bonding through direct contact with the substrate. Manufacturers utilize both continuous and intermittent slot die methods depending on the diaper component. Slot die application delivers exceptional coat weight uniformity and precise edge control, making it ideal for barrier zones. However, contact coating transfers heat directly to the substrate. When applying adhesive to PE film via slot die, thermal management becomes the primary operational constraint. The adhesive must operate at the lowest possible temperature to prevent film distortion while maintaining sufficient flow characteristics to ensure a uniform film thickness across the die lip. Shims inside the slot die must be machined to exact tolerances to prevent streaking.
Before selecting a new formulation, engineering teams must audit their current line equipment. Different application methods demand different adhesive characteristics. The table below outlines the primary differences between spray and slot die methodologies to guide adhesive selection.
Application Method | Coat Weight Control | Heat Dissipation | Adhesive Rheology Requirement | Primary Diaper Application |
|---|---|---|---|---|
Non-Contact Spray | Low to Medium (Highly adjustable) | Excellent (Airflow cools adhesive prior to substrate contact) | Low viscosity, high elasticity to prevent stringing | Backsheet lamination, core stabilization |
Slot Die (Contact) | High Precision (Uniform thickness) | Poor (Direct thermal transfer to substrate) | Stable flow, high thermal stability to prevent die lip buildup | End seals, positioning tapes, specialized barrier zones |
The chemical components within a disposable hygiene hot melt adhesive drive its physical performance. The polymer base provides the structural backbone of the formulation. Styrenic Block Copolymers (SBCs), specifically Styrene-Isoprene-Styrene (SIS) and Styrene-Butadiene-Styrene (SBS), dominate the hygiene market. SIS offers exceptional elasticity and high initial tack, making it ideal for construction and elastic attachment. Amorphous Polyalphaolefins (APAO) offer excellent thermal stability and sprayability, though they typically exhibit longer set times. Recently, the industry has shifted toward metallocene-catalyzed polyolefins. Metallocene polymers deliver high mileage, low odor, and exceptionally clean running properties. They resist charring in the melt tank and provide excellent specific adhesion to polyolefin substrates like PE film.
Polymers alone lack the surface tack required to bond substrates instantly. Tackifying resins modify the polymer network to provide initial grab. Formulators utilize rosin derivatives and hydrocarbon (petroleum-based) resins. Rosin resins offer excellent specific adhesion to polar substrates but can introduce color and odor. Hydrocarbon resins provide excellent stability and compatibility with polyolefins. Advanced formulations often utilize strategic mixtures containing both rosin and petroleum resins. This hybrid approach optimizes specific adhesion to the low-surface-energy PE film while maintaining the high initial tack required to grab the porous nonwoven fibers instantly upon contact. The ratio of these resins directly impacts the glass transition temperature of the final adhesive.
Plasticizers, primarily highly refined mineral oils, control the final viscosity and flexibility of the adhesive. They lower the glass transition temperature, ensuring the bonded diaper remains soft and flexible rather than stiff and noisy during wearer movement. Mineral oil also aids in reducing the operational viscosity, allowing for lower application temperatures. Antioxidants serve a protective role. During continuous processes, adhesive remains at elevated temperatures inside the melt tank and hoses for extended periods. Antioxidants prevent thermal degradation, stopping the formation of char, gels, and carbon buildup that ultimately clog application nozzles and cause machine downtime.
Hygiene products remain in direct, prolonged contact with sensitive infant skin. Adhesive formulations must meet stringent consumer safety and regulatory compliance standards. Manufacturers evaluate adhesives for low volatile organic compounds (VOCs) to eliminate chemical odors upon opening the diaper package. Optical clarity and color stability ensure the adhesive does not create unsightly yellow stains visible through the backsheet. Furthermore, formulations undergo rigorous dermatological testing to achieve skin-friendly certifications, ensuring the absence of known allergens, heavy metals, and skin irritants.
Transitioning to a new adhesive or altering line speeds introduces significant implementation risks. Identifying common failure modes in nonwoven-to-PE bonding allows engineering teams to implement proactive mitigation strategies. Anticipating these physical failures ensures high overall equipment effectiveness (OEE) and minimizes scrap rates. You cannot simply drop a new adhesive into the melt tank without recalibrating the entire application system.
Bleed-through occurs when adhesive penetrates completely through the nonwoven topsheet or backsheet. This creates hard spots that irritate the skin and fouls the nip rollers, requiring immediate machine shutdown for cleaning. Mitigation requires optimizing the coat weight to apply only the minimum required volume, often targeting between 1.5 and 3.0 GSM for construction applications. Operators must adjust the application temperature to ensure the adhesive viscosity increases rapidly upon substrate contact, limiting capillary action. Finally, strictly managing nip roller pressure prevents mechanical forcing of the adhesive through the fiber matrix. If bleed-through persists, check the durometer of your nip rollers to ensure they are not too hard.
Applying excessive heat to thin-gauge PE film causes warping, shrinking, or complete burn-through, destroying the diaper's moisture barrier. Mitigation involves transitioning to low-application-temperature adhesives designed to operate below 130°C. Utilizing spray patterns instead of slot die coating helps dissipate heat into the surrounding air before the adhesive contacts the film. Quality control teams must continuously verify film gauge consistency, as localized thin spots are highly susceptible to thermal damage. Ensuring precise thermal controls and regular calibration at the applicator head prevents temperature spikes. A faulty RTD sensor in the heated hose can easily cause a 10-degree temperature override, instantly melting 12-micron PE film.
Diapers rely on stretched elastomeric strands to provide a secure fit around the legs and waist. If the adhesive fails to hold these strands securely against the nonwoven and PE substrates, the elastic retracts. This phenomenon, known as elastic creep, ruins the diaper's fit and causes leaks. Mitigation requires selecting high-shear formulations specifically engineered for areas under high mechanical stress. The adhesive must exhibit high internal cohesion to resist the continuous pulling force of the spandex or Lycra strands over the product's entire shelf life. You must test creep resistance by incubating bonded samples at body temperature (37°C) for at least 4 hours.
Adhesive degradation inside the dispensing equipment represents a primary cause of unscheduled machine downtime. Overheated adhesive forms carbon deposits that block filters and spray nozzles. Mitigation involves choosing thermally stable adhesives, such as metallocene-based formulations, that resist oxidation. Maintenance teams must implement strict protocols for melt tank temperature setbacks during temporary line stoppages. Regular flushing of hoses and manifolds prevents the accumulation of degraded material, ensuring uninterrupted continuous processing. Never leave a melt tank at operating temperature during a weekend shutdown.
Procurement teams often focus heavily on the price-per-pound of the adhesive. However, evaluating the true cost requires looking at operational reliability and total material mileage. A cheaper adhesive that causes frequent nozzle blockages or requires higher coat weights to achieve acceptable peel strength ultimately increases manufacturing costs. Evaluating vendors based on their ability to deliver consistent performance, reduce scrap rates, and maximize machine uptime provides a more accurate assessment of overall value. You want an adhesive that runs clean and allows you to reduce your add-on weight by 10-15% without sacrificing bond strength.
Off-the-shelf adhesives frequently fail to account for the unique variables of individual production facilities. A reliable diaper adhesive manufacturer must possess the capability to engineer specific solutions. Regional climate conditions drastically affect bonding; high ambient humidity alters substrate moisture content, while extreme cold affects adhesive open times. Vendors must demonstrate the ability to tweak formulations to create a custom diaper hot melt adhesive that accommodates unique substrate blends, proprietary machine configurations, and specific environmental variables. If you switch from a standard spunbond nonwoven to a high-loft through-air bonded nonwoven, your adhesive formulation will likely need an adjustment to maintain the same peel strength.
Successful adhesive integration requires hands-on engineering assistance. Evaluating the vendor's technical infrastructure is just as important as evaluating their chemical formulations. Comprehensive diaper adhesive technical support includes conducting rigorous on-site line trials to validate performance under actual production speeds. Vendor engineers should audit application equipment, verify thermal calibration, and recommend optimal spray patterns. Furthermore, the vendor must provide comprehensive training for line operators, teaching them how to manage precise temperature and pressure settings to maintain consistent bond quality. A vendor who simply ships totes of adhesive without offering on-site optimization is a liability to your production efficiency.
Consistent diaper production requires absolute batch-to-batch consistency from the adhesive supplier. Variations in viscosity or tack between deliveries cause immediate process instability. Evaluate the vendor's global raw material sourcing stability to ensure they can maintain supply during market disruptions. Review their internal quality assurance testing protocols. A qualified manufacturer will routinely perform Shear Adhesion Failure Temperature (SAFT), Peel Adhesion Failure Temperature (PAFT), and dynamic rheometer testing on every batch before shipment, guaranteeing the product meets exact technical specifications.
Audit your current substrate specifications, noting the exact dyne level of your PE film and the GSM of your nonwoven materials.
Request low-application-temperature (LAT) adhesive samples from your supplier to run a controlled thermal distortion test on your thinnest barrier films.
Schedule a joint line trial with your adhesive vendor's engineering team to calibrate spray nozzle air pressure and optimize coat weights.
Implement a standardized 180-degree T-peel testing protocol on the production floor to verify bond strength at the start of every shift.
A: The industry has shifted from traditional 150°C-170°C ranges down to low-application-temperature (LAT) ranges of 110°C-130°C. This lower temperature profile protects thinner, down-gauged PE films from thermal distortion, reduces energy consumption at the melt tank, and minimizes the risk of adhesive degradation during continuous processing.
A: Industry standards rely primarily on 180-degree T-peel tests to measure the force required to separate the substrates. Dynamic shear testing under temperature-controlled conditions evaluates the adhesive's internal cohesion and its ability to resist sliding forces, ensuring the bond holds under wearer movement.
A: Bleed-through occurs due to excessive capillary action. Root causes include operating with an adhesive viscosity that is too low, using application temperatures that are too high, applying excessive coat weights, or utilizing excessive nip roller pressure that physically forces the molten adhesive through the fiber matrix.
A: Construction adhesive focuses on the broad lamination of substrates, such as bonding PE to nonwoven, and securing end seals. Elastic attachment adhesive requires significantly higher shear resistance and internal cohesion to hold stretched elastomeric strands firmly in place without creeping or retracting over time.
A: Yes. Fast-setting, clean-running adhesives eliminate stringing, nozzle blockages, and equipment fouling. By maintaining stable viscosity and preventing carbon buildup, high-quality adhesives directly enable higher pieces-per-minute (PPM) line speeds and support highly efficient, uninterrupted continuous processing.
